Publication Preview

IMS-54, Landslide inventory maps of the northern half of the Vernonia quadrangle, Columbia County, Oregon, by William J. Burns, Katherine A. Mickelson, and Evan C. Saint-Pierre

(NW and NE quarter-quadrangle map plates of the Vernonia 7.5' USGS quadrangle; 1:8,000 scale)

Download publication .zip file (233 MB)

Publication contents:

Along with a readme file, the publication CD contains 1) IMS-54 GIS data, metadata, and map views of the GIS data, 2) DOGAMI Special Paper 42, and 3) two landslide factsheets.

1. IMS-54 folder:

1. Geodatabase: IMS-54_Landslide_Vernonia.gdb - ArcGIS version 10
   Geodatabase contains shp files for 1) landslide deposits, 2) head scarps and flanks, and 3) scarps; metadata for shp files is included.
2. IMS-54_metadata.xml - metadata for GIS files in XML format.
3. Map plates in PDF format:

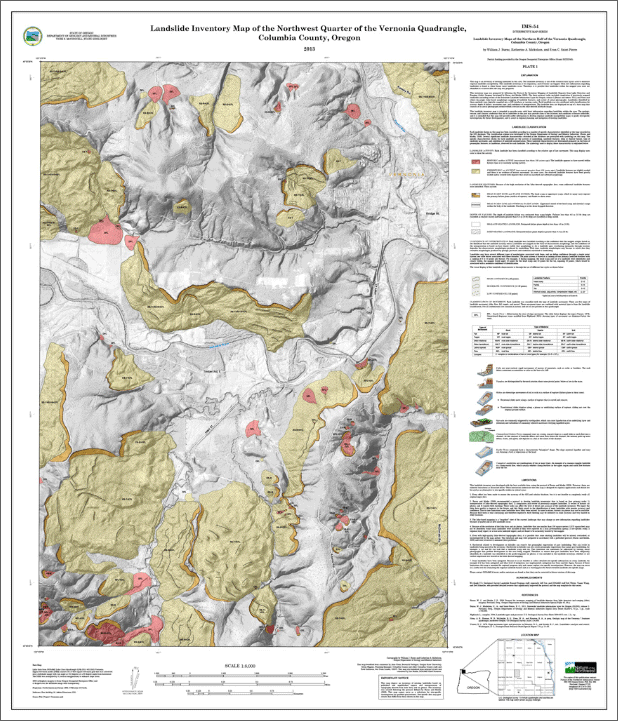

   - IMS-54_Plate-1_NW_Vernonia.pdf, Landslide inventory map of the northwest quarter of the quadrangle
   - IMS-54_Plate-2_NE_Vernonia.pdf, Landslide inventory map of the northeast quarter of the quadrangle

2. SP-42 folder: compressed file containing DOGAMI Special Paper 42, Protocol for Inventory Mapping of Landslide Deposits from Light Detection and Ranging (Lidar) Imagery, by William J. Burns and Ian P. Madin -- included to provide background on how the landslide inventory data were prepared. The SP-42 file set consists of:

1. Text report (print and onscreen versions), 30 p.

2. "geodatabase_template" folder:
   - Landslide_Inventory_Template-ArcInfo.gdb - includes relationship classes between the feature classes
   - Landslide_Inventory_Template-ArcView.gdb
   - sr_Toolbox.tbx - additional tools: Find Unmatched Features and Unjoin Layers

3. Readme.txt file

3. DOGAMI-fact-sheets folder:
- Understanding Landslide Deposit Maps
- Landslide Hazards in Oregon

IMS-54 map plate previews:
